Description

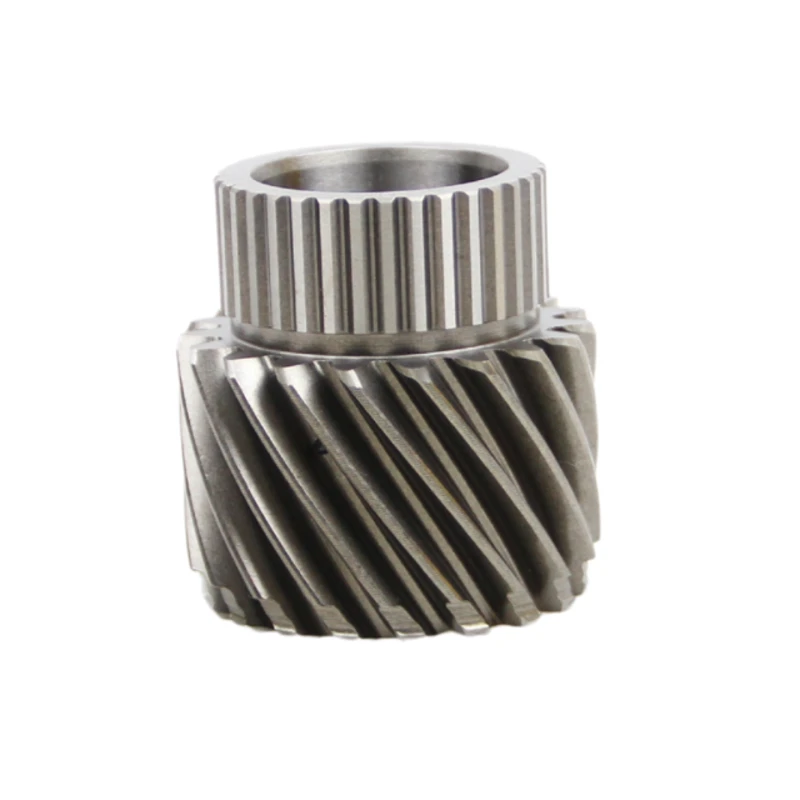

This gear is the 5th driven gear specifically designed for the Ford Type 9 five-speed manual transmission, commonly used in various rear-wheel-drive Ford models such as the Sierra and Capri. It features a 19-tooth helical design with a short internal spline, allowing precise engagement with the main shaft and synchronizer sleeve for reliable power transmission.

Mounted at the rear section of the transmission, this gear works in conjunction with the 5th idler gear to create an overdrive ratio, reducing engine RPM during high-speed driving and improving fuel efficiency and driving stability. The gear teeth are surface-hardened for enhanced wear resistance and long service life.

Specification

Material: SAE 8620 or SAE 4320H

Internal Structure: Short spline design

Heat Treatment: Carburized and quenched

Surface Hardness: HRC 58–62

Gear Type: Helical gear

Tooth Count: 35/19T

Machining: Precision hobbing and/or ground gear finish (depending on version)

Compatible vehicles :
Suitable for rear-wheel-drive vehicles with the Ford Type 9 5-speed manual transmission, including the Ford Sierra, Capri, Granada, Cortina, Escort RS2000, and various British sports and kit cars such as TVR, Caterham Seven, and Morgan Plus 4. Also used in classic car builds and motorsport conversions.
