Main Features of Gear Profile Measurement Process
Measures key parameters of gears such as tooth profile, number of teeth, module, pressure angle, addendum height, and root height.
Ensures that the gear design conforms to standards and provides ideal meshing performance in actual use.


High-Precision Testing Equipment

Uses specialized gear measurement instruments such as Coordinate Measuring Machines (CMM), gear checkers, and gear measurement machines to achieve high-precision measurements.
Measurement accuracy can reach μm level, ensuring the dimensional tolerance and tooth profile precision of the gear.


Data Analysis and Reporting

The measurement results typically generate detailed reports, showing the gear's geometric parameters, error analysis, and improvement suggestions.
This data can be used to improve the gear manufacturing process, reducing the occurrence of defective products.


Strong Adaptability

Can measure various types of gears, including spur gears, helical gears, bevel gears, and internal gears.
Suitable for measuring gears of various materials and sizes, covering everything from miniature gears to large transmission gears.



Coordinate Measuring Machine (CMM)

Coordinate Measuring Machine (CMM)



Profile Grinding Machine

Profile Grinding Machine

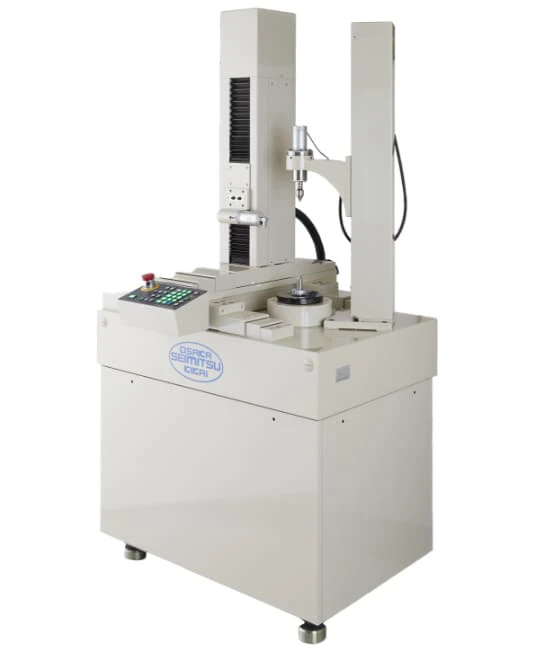

Gear Profile Tester
