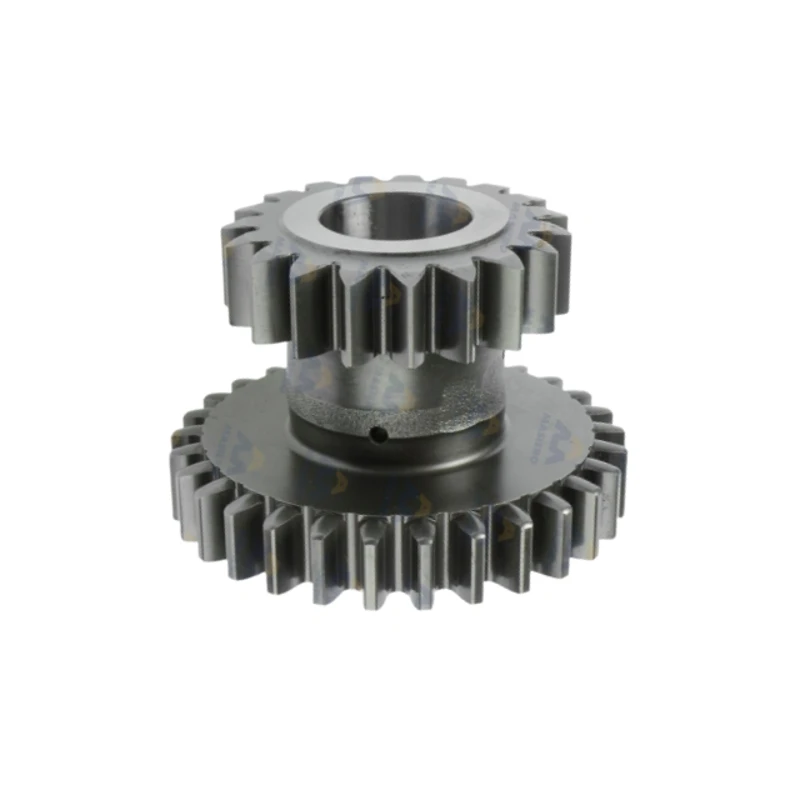

M21 Cluster Gear - 17/19/22/27T
Description
The WT297-8D is a close-ratio cluster gear designed for GM Muncie M21 4-speed manual transmissions (1966–1974) with a 1-inch countershaft. Made from high-strength carburizing alloy steel (e.g., SAE 8620) and heat treated to HRC 58–62, it offers excellent wear resistance and durability. This gear enhances power transfer and shift smoothness, making it ideal for classic muscle car restoration, upgrades, or performance builds. Precision-machined to meet OEM standards for easy installation and long-term reliability.
Specification
Material: SAE 8620 or SAE 4320H
Heat Treatment: Carburized & Quenched
Gear Surface Hardness: HRC 58–62
Tooth Count: 17 / 19 / 22 / 27T
Manufacturing Process: Precision gear hobbing with external cylindrical grinding
Large End Outer Diameter: Approx. 38 mm
Small End Outer Diameter: Approx. 28 mm
Overall Length: Approx. 171 mm
Net Weight: Approx. 1.25 kg
-
Model：WT297-8D
