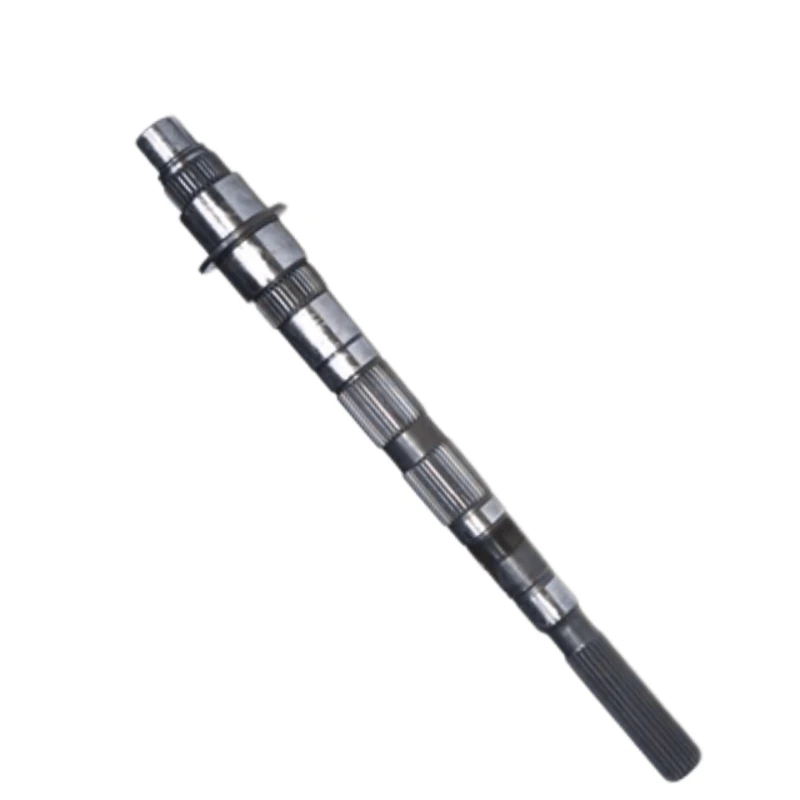

M5R1 2WD Main Shaft

Description

Designed for 2WD M5R1 transmissions, this main shaft is made from high-strength carburized alloy steel (SAE 8620 or SCM415) with a surface hardness of HRC 58–62. Suitable for Ford Ranger (1998–2003) and early Mazda B2500 2WD models, it delivers stable and reliable performance.

Specification

Material : SAE 8620 or SCM415

Heat Treatment : Carburized and quenched

Surface Hardness : HRC 58–62

Gear Type : Helical gear

Tooth Count: 32 / 40 / 34 / 25

Manufacturing Process : CNC precision machining + fine grinding

Surface Finish : Polished after carburizing and quenching to reduce friction and improve shifting smoothness

  • Model:M5R1-2
