5th Gear Kit | Nissan FS5W71 (2WD)

Description

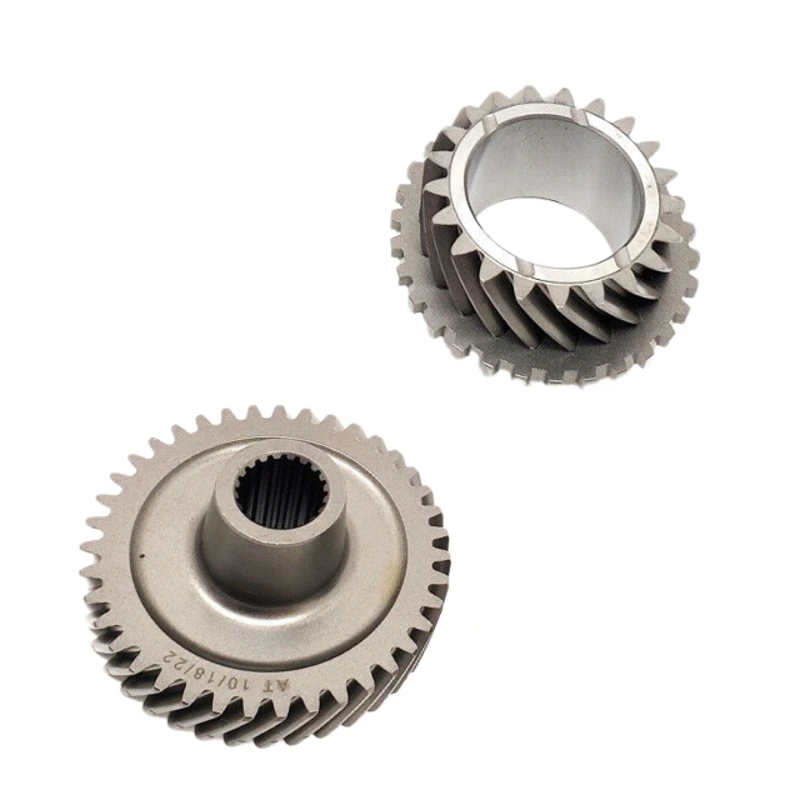

Helical 5th-gear pair for Nissan FS5W71 2WD manual transmissions. The set includes the mating mainshaft and countershaft gears (21/39 teeth) designed to interface with the OE synchronizer for quiet operation and high load capacity. Manufactured from case-carburized alloy steel and precision ground, these gears deliver excellent wear resistance, tooth strength, and consistent engagement—ideal for rebuilds or quality replacement.

Specification

Tooth Count: 21T / 39T

Gear Form: Helical

Material: SCM415 / SAE 8620 carburizing alloy steel (or equivalent)

Heat Treatment: Carburized & quenched, tempered

Surface Hardness: HRC 58–62 (tooth flanks), tough core

Manufacturing: CNC turning & hobbing; corrected dog teeth & deburring; ground bore and faces

  • Model:NIS-5C(A-201)
