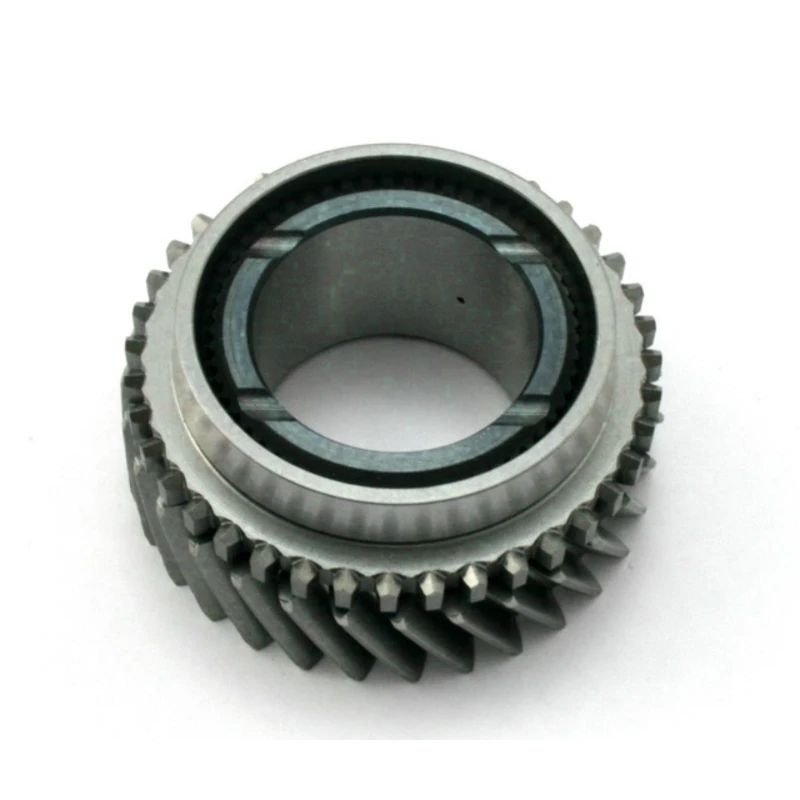

AX15/R151 2nd Speed Gear

Description

The AX15-11 is a 2nd speed gear designed for the Jeep AX15 5-speed manual transmission, responsible for mid-to-low range torque delivery. It features a helical gear design for smoother power transfer and reduced noise, making it suitable for both daily driving and off-road use. The internal spline fits securely onto the main shaft, while the external teeth engage precisely with the second synchronizer ring for stable shifting performance.

Made from high-quality carburized alloy steel (SAE 8620 or SAE 4320H), the gear undergoes heat treatment to achieve a surface hardness of HRC 58–62, offering excellent wear resistance and durability. Precision hobbing or grinding ensures accurate tooth contact and long service life.

Compatible with OEM Jeep AX15 transmissions, it’s ideal for repairs, rebuilds, or performance upgrades.

Specification

Gear Type : Helical Gear

Tooth Count : 39-1 / 31T

Surface Hardness : HRC 58–62

Material : SAE 8620 or SAE 4320H

Heat Treatment : Carburized and quenched

Surface Finish : Precision ground or hobbed teeth

Internal Structure : Precision splined to fit main shaft

External Structure : Helical tooth profile for synchronizer engagement

Manufacturing Tolerance : OEM standard precision

Compatible Vehicles :

• Jeep Cherokee XJ (1989–1999, selected 4.0L models)

• Jeep Comanche MJ (1989–1992)

• Jeep Wrangler YJ / TJ (1989–1999, 4.0L I6 engine)

• Jeep Grand Cherokee ZJ (early 4.0L manual transmission models)

Dodge Dakota (select 1990s models with 3.9L / 5.2L manual transmission)

Dodge Ram 1500 (1994–1996, manual transmission models)

  • Model:AX15-11
