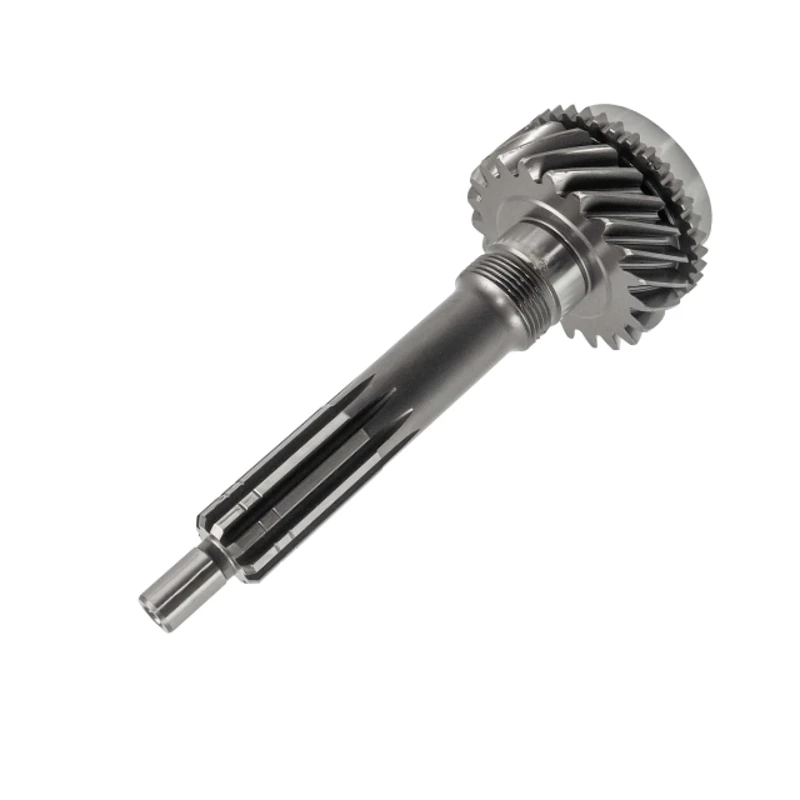

Input Shaft-21T

Description

The AWT297‑16B is a high-strength input shaft made from SCM415 or SAE 8620 carburized alloy steel. It features a 21-tooth helical gear and a 10-spline configuration. Through precision carburizing and quenching treatment, the gear surface achieves a hardness of HRC 58–62, offering excellent wear resistance and high torque durability. Designed for medium to heavy-duty transmission systems, it ensures stable power transmission and precise engagement even under prolonged operation.

Specification

Gear Type: Helical Gear

Tooth Count: 10 / 21 / 36T

Material: SCM415 or SAE 8620

Heat Treatment: Carburized & Quenched

Gear Surface Hardness: HRC 58–62

Overall Length: Approx. 162 mm

Surface Finish: Precision gear hobbing with ground splines

  • Model: WT297-16B (AWT297-16B)
