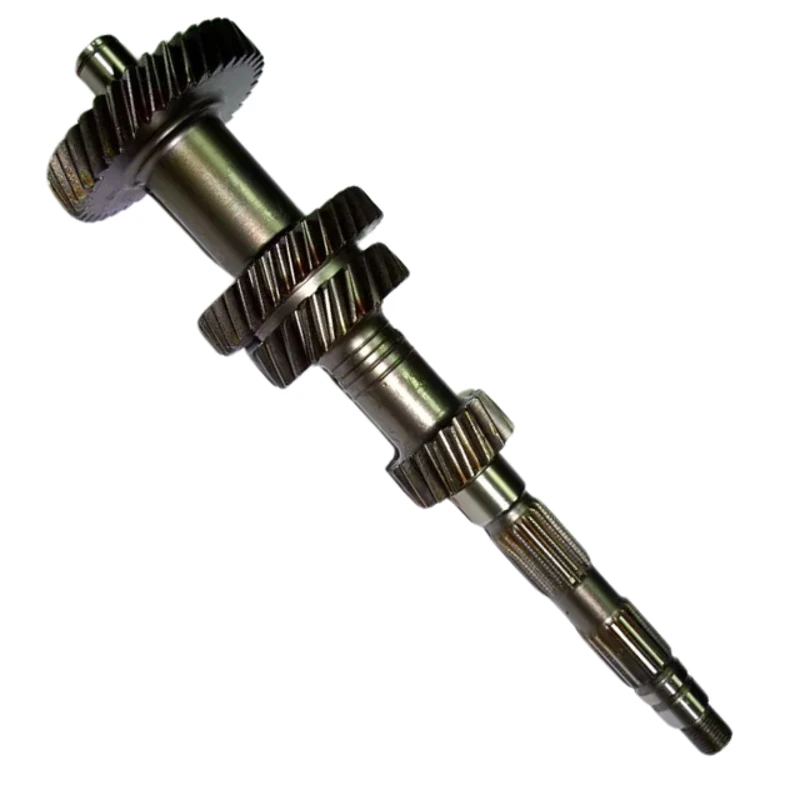

M5R1 Cluster
Description
Designed for the Ford M5R1 5-speed manual transmission, the M5R1-8 cluster gear is widely used in rear-wheel-drive vehicles like the Ford Ranger and Mazda B-Series. Made from high-strength carburized alloy steel with precision heat treatment, it ensures durable, smooth power transfer and reliable performance under heavy loads.
Specification
Tooth Count : 38 / 32 / 24 / 16 / 29 teeth
Material : Carburized alloy steel (SAE 8620 or SCM415)
Heat Treatment : Carburized and quenched
Surface Hardness : HRC 58–62
Manufacturing Process : CNC precision machining with tooth surface grinding
Weight : Approximately 1.8–2.2 kg
-
Model:M5R1-8 (E8TZ-7113D)
