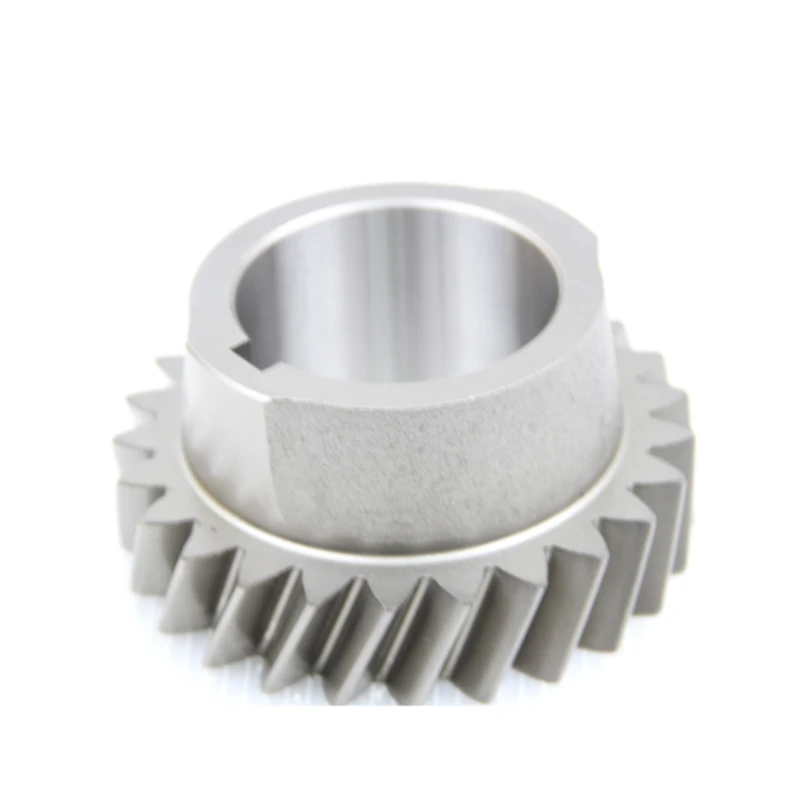

Toyota 2nd Gear

Description

Helical 2nd driven gear with integral dog teeth, designed to work with the 2–3 synchronizer assembly. Carburized alloy steel provides a hard, wear-resistant tooth surface and a tough core for commercial-duty loads. Ground bore and faces plus de-burred dogs ensure OE-level concentricity and smooth, positive engagement. Direct replacement for OE 33033-36090.

Specification

Tooth form: Helical

Compatibility: Toyota 5MT matching OE 33033-36090 (e.g., Dyna/Coaster 14B)

Material: SCM415 / SAE 8620 alloy steel (or equivalent)

Heat Treatment: Carburized & quenched, tempered

Hardness: HRC 58–62 surface; core HRC 30–36

Manufacturing: CNC turning/milling, precision hobbing, dog-tooth finishing & deburring; ground bore and locating faces
