M20/M21/M22 3-4 Gear HUB

Description

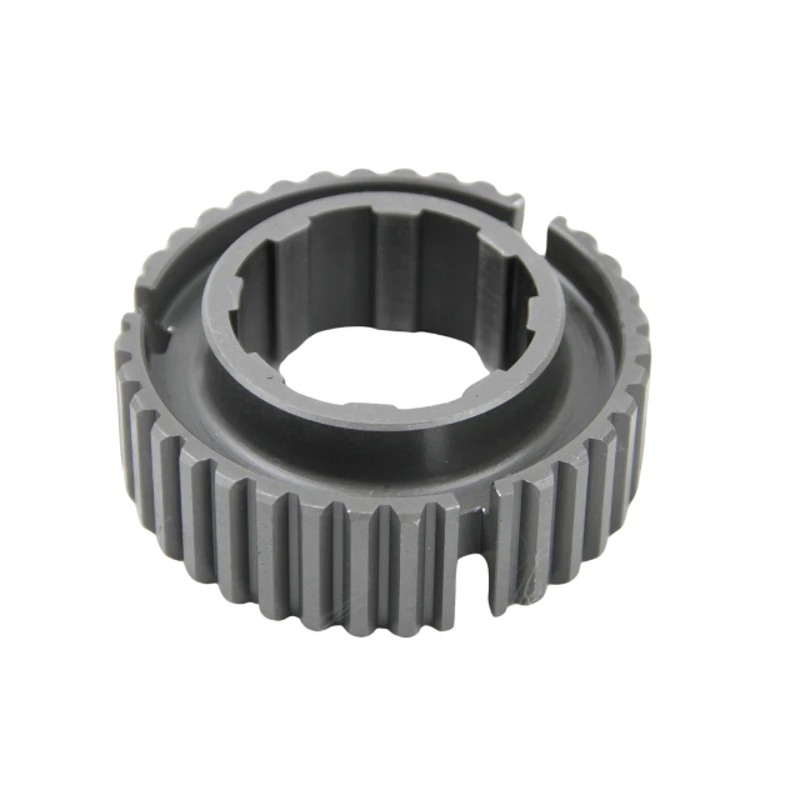

The WT297-2.5A is a heavy-duty 3rd–4th gear synchro slider and hub set designed for GM Muncie 4-speed transmissions (1963–1974).
Featuring a torque-locking tooth design for smoother, more secure shifts at high RPM, it’s made from hardened alloy steel for excellent durability—ideal for rebuilds or performance upgrades.

Specification

Gear Type : External spline slider with straight internal spline

Tooth Count : 36 / 8 teeth

Material : Carburized alloy steel, SAE 8620 or SCM415

Heat Treatment : Carburized & quenched

Surface Hardness : HRC 58–62

Machining Process : Precision hobbing (external teeth) + CNC spline machining
