T10 Reverse Gear

Description

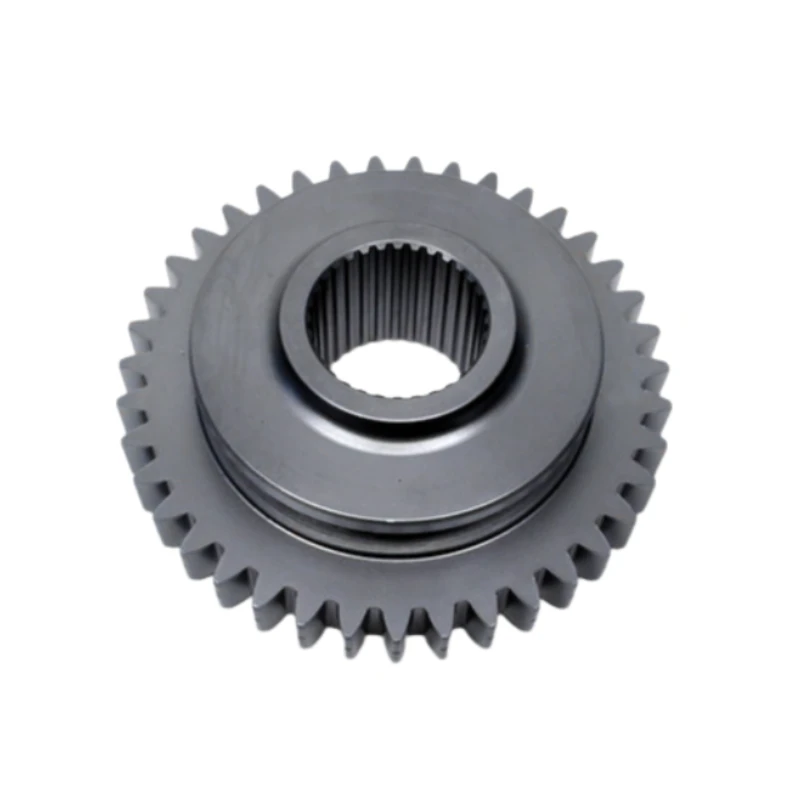

The T10W-46 is a reverse gear designed for Borg-Warner T10 and Super T10 4-speed manual transmissions. It features 39 helical teeth and a 32-spline inner bore, making it compatible with performance GM vehicles such as Camaro, Firebird, and Corvette from the 1970s–1980s. Made from high-quality carburized alloy steel, this gear is engineered for durability and resistance to shock loads during reverse engagement.

Specification

Tooth Count : 39T

Spline Count : 32 Spline

Gear Type : Helical

Material : SAE 8620 or SCM415 carburized alloy steel

Heat Treatment : Carburized & Quenched

Surface Hardness : HRC 58–62

Finish : Hardened surface, precision deburring

  • Model:T10W-46(S-519)
