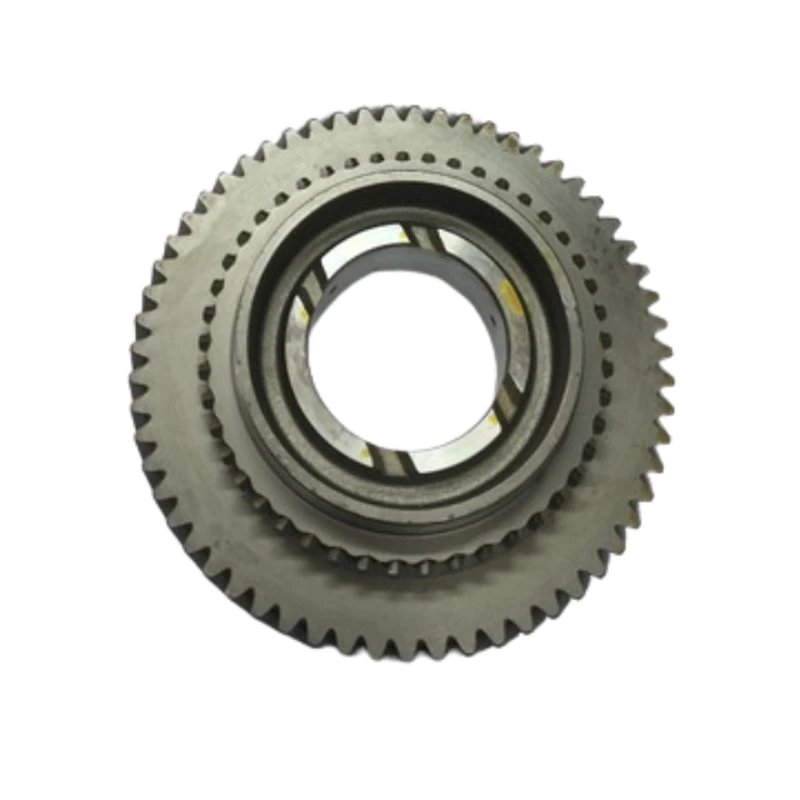

Transmission gear for toyota Forklift 33335-26600
Description
Part 33335-26600 is an OE-matched manual transmission gear with an integrated synchronizer dog-tooth ring. Precision-hobbed helical teeth and edge relief minimize mesh noise, while the ground bore and faces maintain concentricity with the hub/slider, blocker rings, and mating gear under load. Produced from alloy case-hardening steel and carburized & quenched for excellent wear and pitting resistance, it installs as a true drop-in to restore shift quality and NVH.
Specification
Tooth Form: Helical
Tooth Count: 36/33T
Material: Alloy case-hardening steel, SCM415 / SAE 8620 or equivalent
Heat Treatment: Carburized & quenched
Surface Hardness: HRC 58–62
Manufacturing: CNC turning/milling; precision hobbing; dog-tooth finishing & deburring; bore and locating faces precision-ground
-
Model：33335-26600
